Item specifics
  • Package: Yes
  • Use: Computer
  • Bundle: Bundle 1
  • Cable Length: 1M
  • Model Number: E-073
  • USB Type: Other
Product Description
 Industry-grade RS-232 to RS-422/RS-485 Serial Device Active Converter.

    Internal photoelectric isolator and DC/DC DC stabilized voltage converter offer 3500V isolated voltage.

    TVS (transience voltage suppresser) prevents lightning damage efficiently.

    ESD offers 600W surge and lightning protection for each line.

    With transparent data transmission feature, no need to modify any program based on current RS-232 mode.

    RS-485 network can be formed easily without handshake signal.

    Compatible with EIA/TIA RS-232C, RS-422 & RS-485 standard.

    Connectors: RS-232 DB9 female connector, RS-422/485 DB9 male connector & DC 9V power jack.

    LED indicators:  RXD, TXD & Power.

    Transmission media: Shielded Twisted Pair.

    Operation mode: Asynchronous half duplex or full duplex.

    Isolation voltage: 3500VRMS & 500VDC.

    Protection grade: 15KVESD protection for RS232, 600W lightning & surge protection for each line for RS422/485.

    Transmission speed: 300-115.2Kbps.

    Transmission distance: 0-5KM.

    Application environment: temperature from 0-50, relative humidity from 5% to 95%.

    Allow to connect to up 32 serial devices.

    Case size: 90mm*25.5mm*65mm.

    Case weight: 184g.

    It is widely used in industrial automation, attendance machine, IC card fee-charge, door access, all-in-one-card, car parking, ATM, bus charge, eatery automat and highway toll gate, etc.

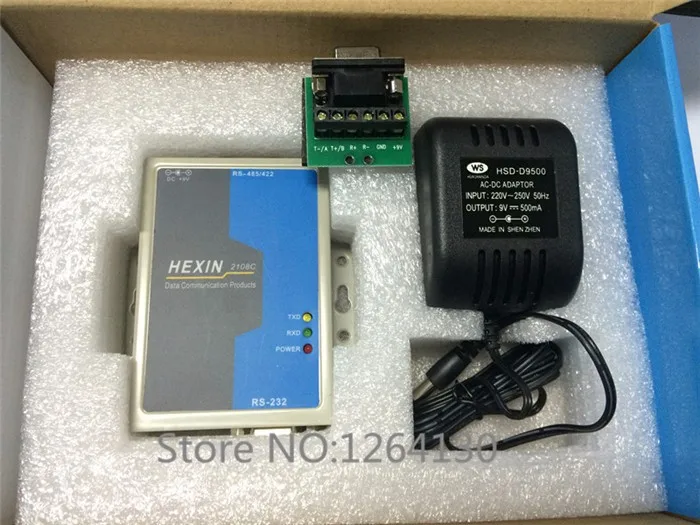

Package content:

     1X RS-232 to RS-422/485 Converter.

      1X 6 Pin Terminal strip.

      1X AC-DC Power Adapter. (US spec. Input 220v-250v and Output 9v 500mA)

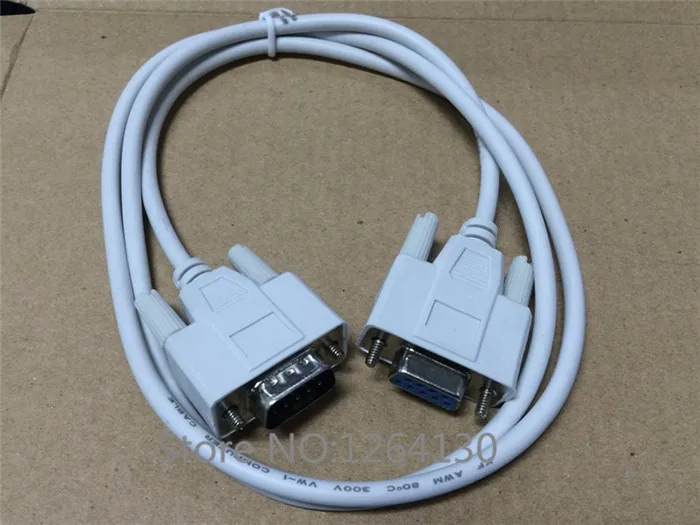

      1X 1M DB9 Female to Male Cable.




IMG_6528IMG_6529IMG_6530
Packaging Details
  • Unit Type: piece
  • Package Weight: 0.8kg (1.76lb.)
  • Package Size: 21cm x 17cm x 8cm (8.27in x 6.69in x 3.15in)
